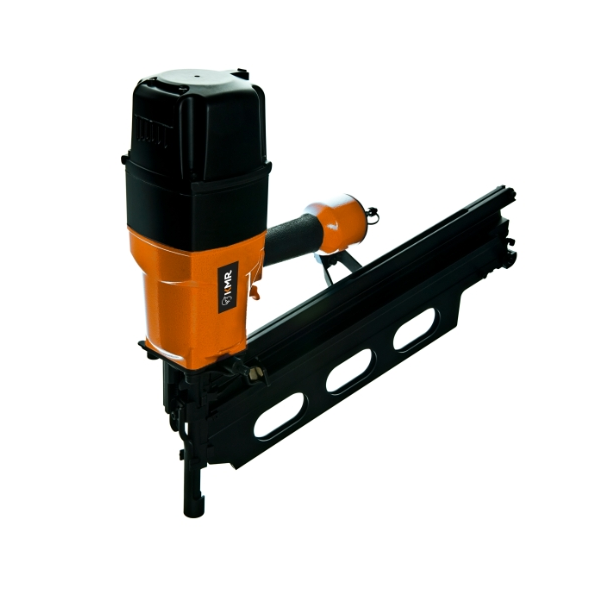

KMR 3506 20° Packing & Joinery Angled Air Framing Strip Nailer – 90-160mm

KMR 3506 20° Packing & Joinery Angled Air Framing Strip Nailer – 90-160mm

£726.00

£726.00

KMR 3506 20° Packing & Joinery Angled Air Framing Strip Nailer – 90-160mm

Features
Handy
Depth adjustment
Additional handle

Applications
Roofing and carpentry operations
Industrial packers
Heavy duty packaging
Timber construction
Timber frame construction

Contents
Spare parts list
Service instructions
Protective glasses
Allen key
Additional handle
Oil bottle

TECHNICAL SPECIFICATIONS
GTIN / EAN 4045759058359
item number 12100625
fastener KMR nails type nail strips K20 °
Diameter min 3.8 mm
Diameter max 4.6 mm
Length min 100 mm
Length max 160 mm
Dimensions L / H / B 568/538/145 mm
mass 6.9 kg
safety yoke Single Shot
Permissible air pressure 8.0 bar / 0.8 Mpa
Recommended operating pressure 5.0-8.0 bar / 0.50-0.80 Mpa
Air consumption per input operation 7 liters at 4.9 bar (0.49 MPa)
A-weighted single-event sound power level L Wa, 1s = 105.7 dB (A)
A-weighted single event emissions Sound pressure level at the workplace L pA, 1s = 92.7 dB (A)
