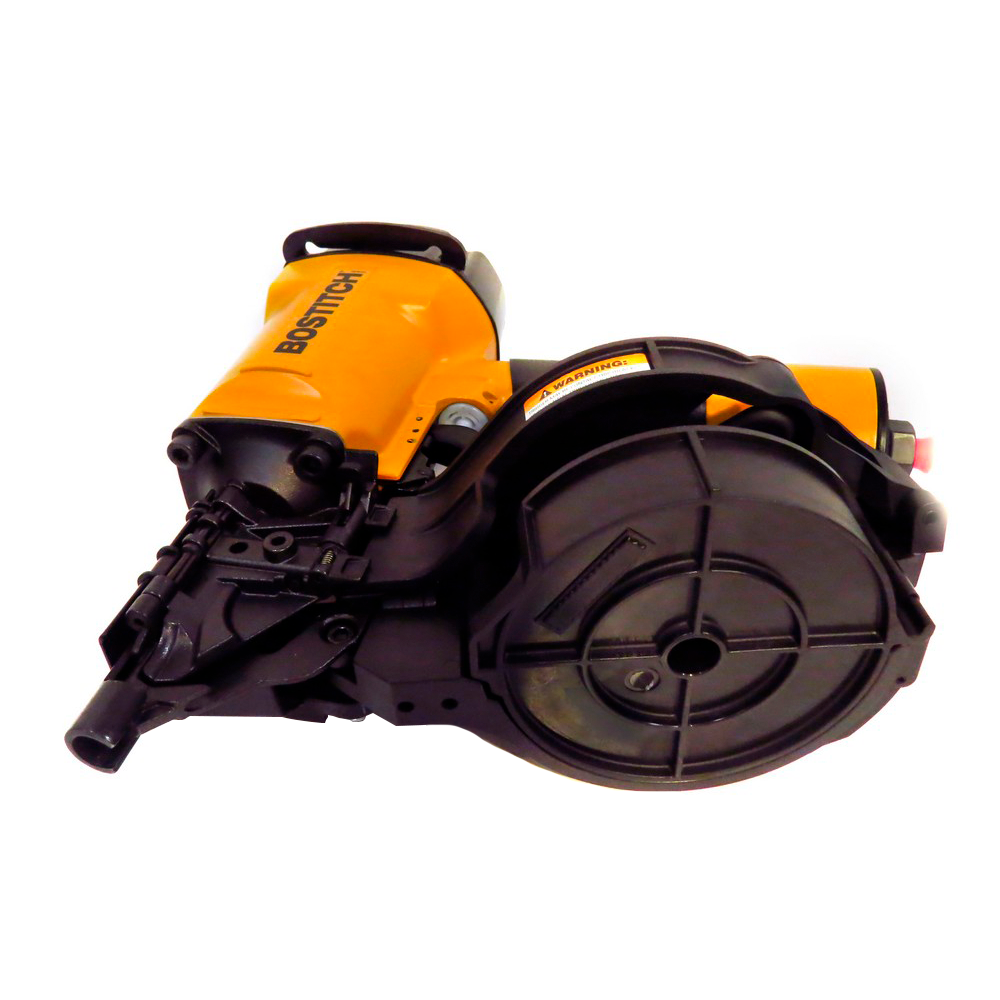

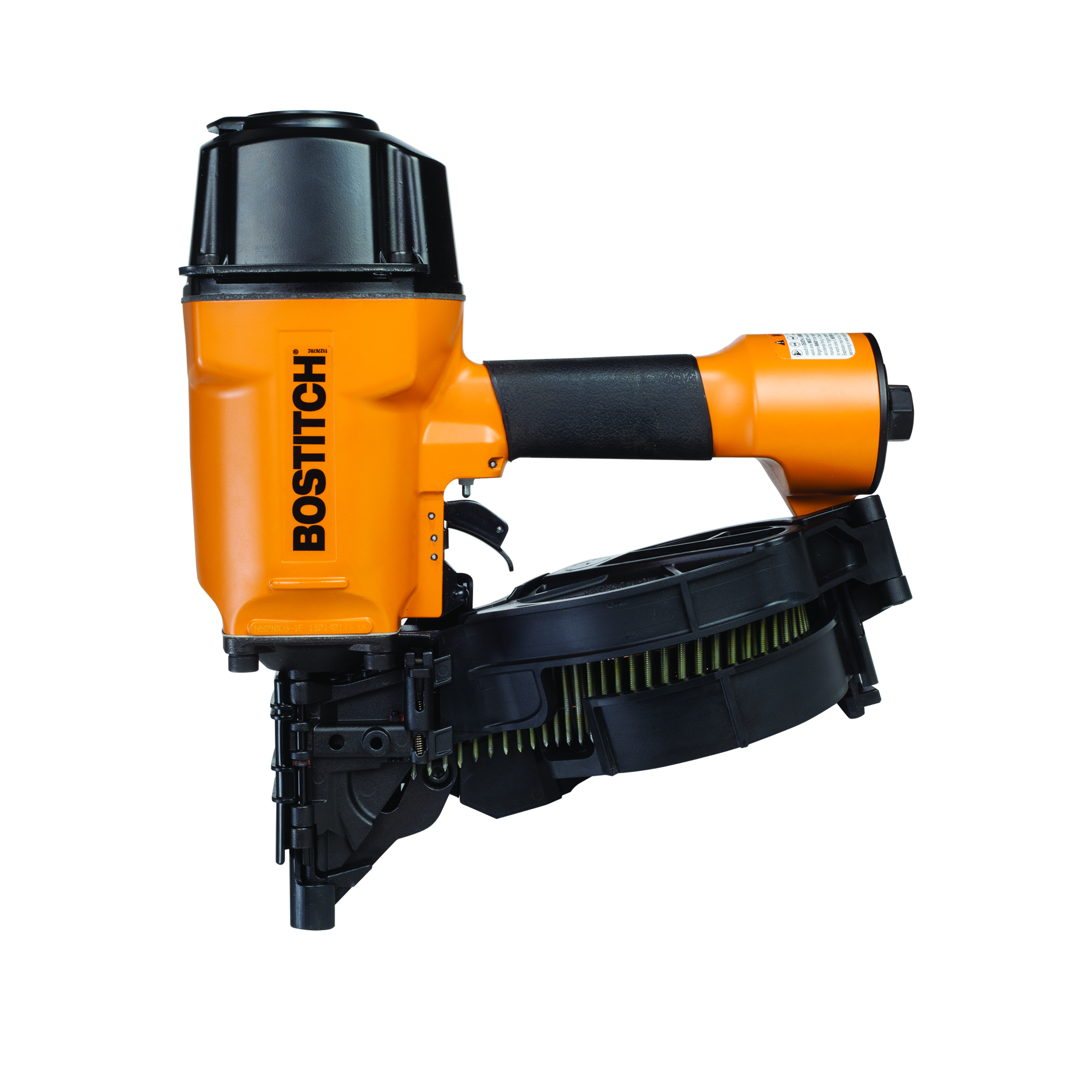

Bostitch N8090CB-1ML-E Compact Nose Air Coil Nailer – 38-90mm

Bostitch N8090CB-1ML-E Compact Nose Air Coil Nailer – 38-90mm

£674.99

£674.99

Bostitch N8090CB-1ML-E Compact Nose Air Coil Nailer – 38-90mm

PRODUCT DESCRIPTION
Tool Details
The new N8090CB-1ML-E coil nailer has been developed to satisfy the need for a compact tool that could handle the everyday punishment of a busy crate manufacturing environment, whilst driving up to 90mm nails*.
Perfect for tight spaces, the compact body means easier access to crate corners and faster production turnaround times. Built on the tried and tested N80 platform, the new tool includes a host of user friendly features designed for continual working with minimal downtime.
Light weight and manoeuvrable
’Bump fire’ contact trip for rapid nailing
Large capacity magazine – up to 220 nails per coil
*Smooth shank recommended for 80-90mm nails

Features

  • Magnesium HousingMagnesium Housing
  • Adjustable ExhaustAdjustable Exhaust
  • Contact TripContact Trip
  • Steel Frame ProtectorsSteel Frame Protectors

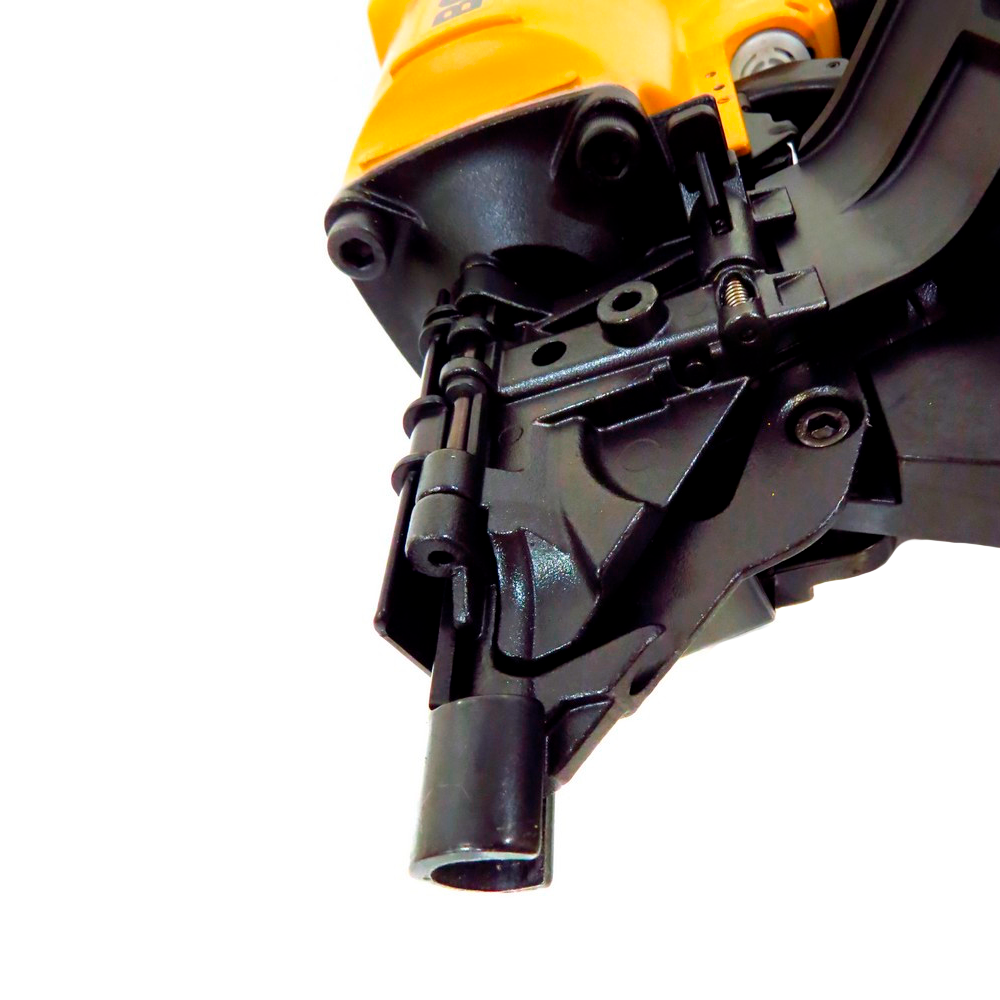

  • Compact NoseCompact Nose
  • Power type Pneumatic
    Weight 3.86 kg
    Width 140 mm
    Length 306 mm
    Height 336 mm
    Magazine capacity (max) 225
    F Series Fasteners:
    Diameter (mm) 2.5 (min) 2.8 (max)
    Length (mm) 38 (min) 90 (max)
    Head (mm) 6.5 (min) 7.2 (max)
    Collation angle 15
    Operating pressure 4.9 – 7 BAR
    71 – 100 PSI
    Air Consumption Ltr.per shot @ 5.6 bar 2.04
    Air fitting thread type 1/4 BSP
    Noise LPA 1sd 85.9
    LWA 1sd 98.93
    LPA 1s, 1m 90.18
    Vibration / Uncertainty 3.198 / 1.6 m/s2
